Overview
The measurement system includes the following components and features:
- VisionPro Industrial Camera: High-quality imaging for precise inspection.
- Ring Light: Provides uniform illumination for accurate image capture.
- Optical System: Equipped with zoom and auto-focus capabilities to ensure clarity and precision.
- Integrated Control System: Seamlessly manages the hardware and software components.
- Advanced Software: Combines VisionPro tools for image acquisition and control with advanced image processing algorithms for efficient object inspection and analysis.
- Fast and Accurate Detection: Ensures reliable measurement and detection for industrial automation applications.
This solution guarantees fast, accurate detection and measurement for industrial automation applications.
Use Mode
Our solution can be used in two modes: In-Line Mode: The system is connected to a PLC to inspect the product and then sends the test information to the PLC. Based on the results, the product is either allowed to proceed to the next steps or is scrapped. Off-Line Mode: The system operates without a PLC. The user manually places the product on the platform, presses a button to initiate inspection, and then receives the test result.
Traceability

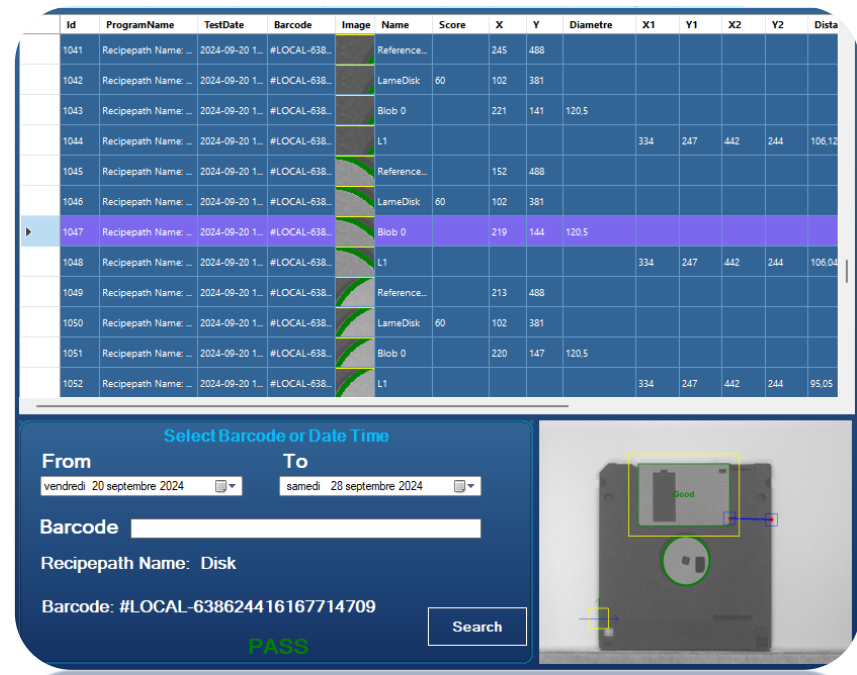

Our system inspects the product and stores the image along with all test-related information in the database. In the event of a production review, the user can select a date range to view all inspections performed during that period or simply enter the product's serial number (SN) to retrieve all related information.
Offline Programming

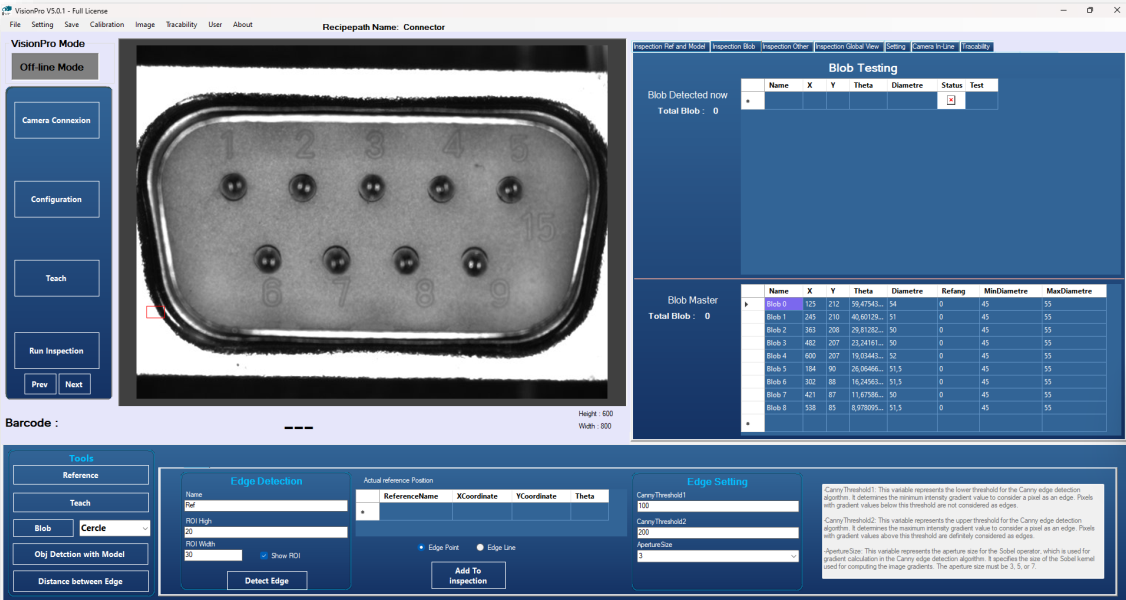

The user can capture images of the product and use our system to import the images and create inspection programs in an off-line station. After creating the program, the user can load an image sequence (multiple images at once) and simulate the program’s effectiveness before implementing it in the production line.
Input – Output

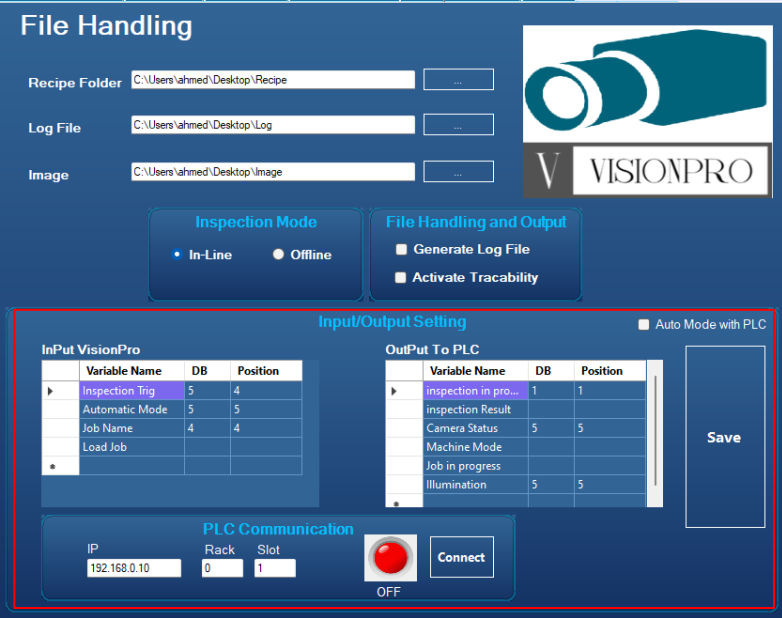

Our system is capable of communicating with Siemens PLCs. Inspection Trigger: The PLC sends a trigger to our system to capture an image and proceed with image analysis. Automatic Mode: If VisionPro is in Off-Line Mode and production starts, the PLC can switch the system from Off-Line Mode to In-Line Mode. Job Name: The PLC sends the job name to load the correct program in Auto Mode. Load Job: A Boolean value (True or False) indicating whether to load the job or not.
